SubscriptionFlow In-App Portal Integration (Shopify)

Purpose:

The In-App Portal integration allows Shopify customers to manage their subscriptions directly within your store, without redirection to external portals. This guide explains how to configure the SubscriptionFlow In-App Portal step-by-step using a custom page template in Shopify.

Prerequisites:

• SubscriptionFlow is fully integrated with your Shopify store.
• Your site domain is whitelisted in SubscriptionFlow.
• You have the SubscriptionFlow Client UUID (used to initialize portal sessions).
• jQuery is available in your Shopify theme (or will be loaded by the integration).

1. Navigate to SubscriptionFlow Portal Manager

• Login to your SubscriptionFlow Admin Panel.

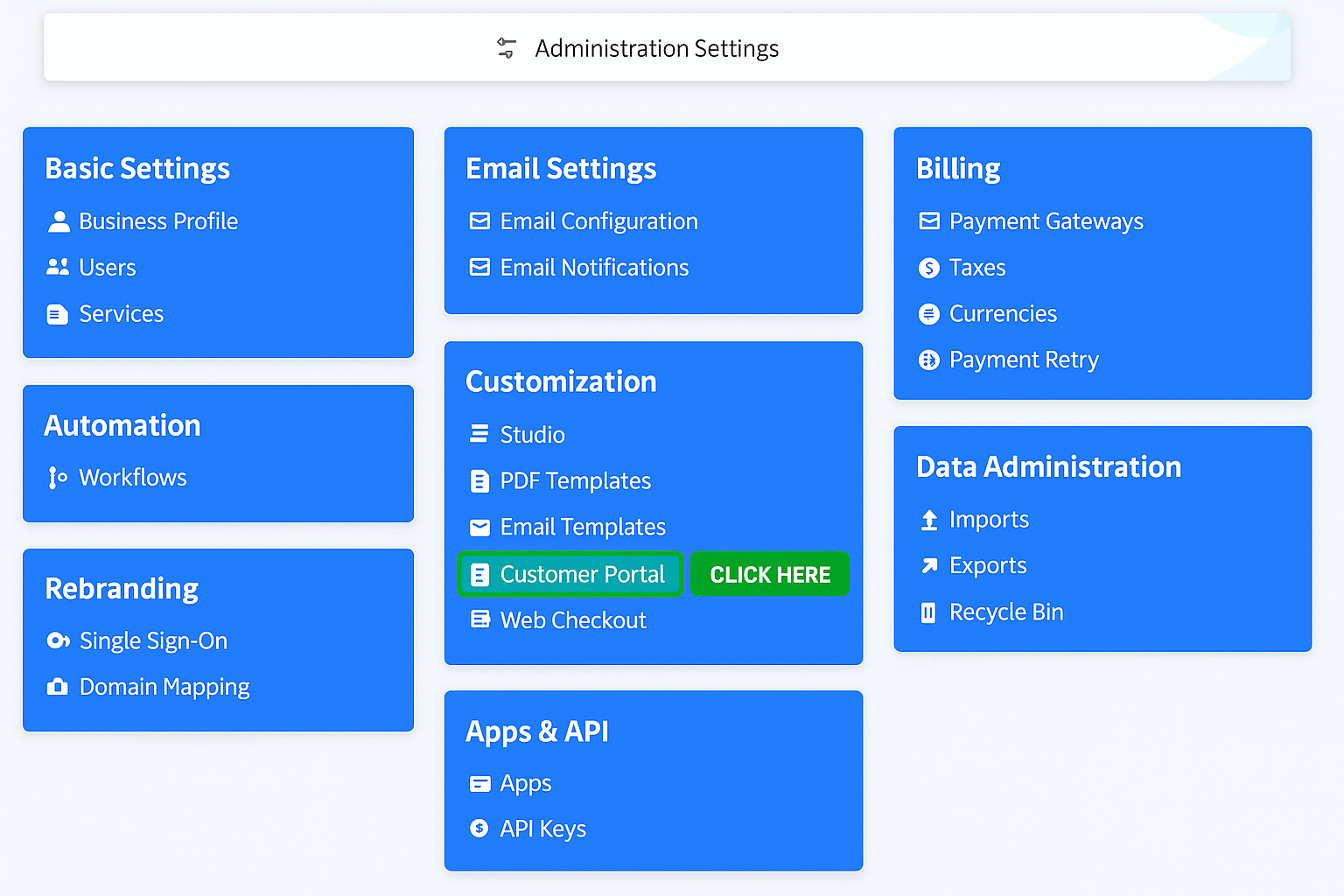

• Go to SubscriptionFlow Administration Setting → Customer Portal.
• Copy your unique site code and UUID for the portal script.

2. Make Auto Enable Portal Option to TRUE

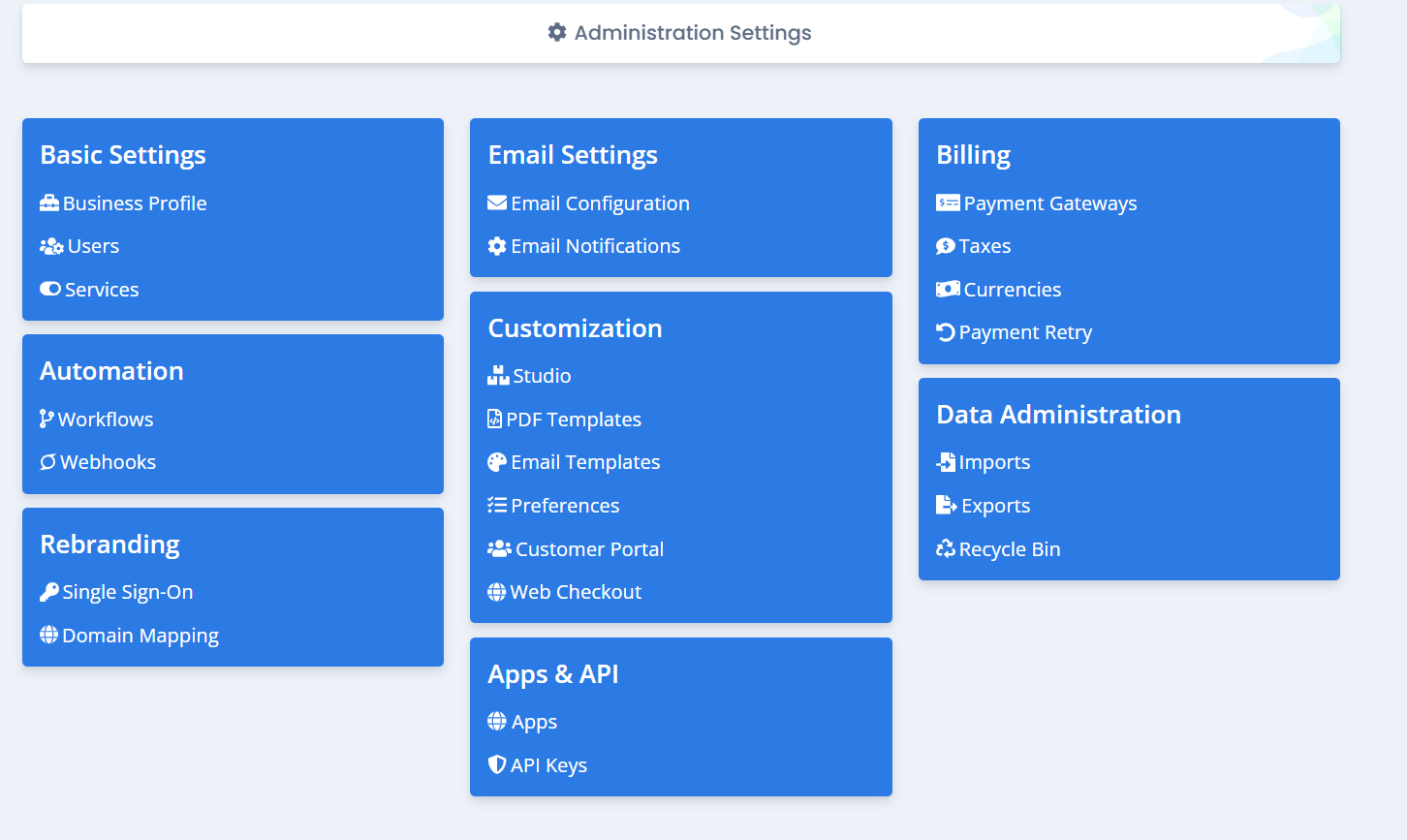

• Go to SubscriptionFlow Administration Setting → Preferences.
• Preferences à Advance Setting à Auto Enable Portal (TRUE)

3. Get the In-App Portal Scripts

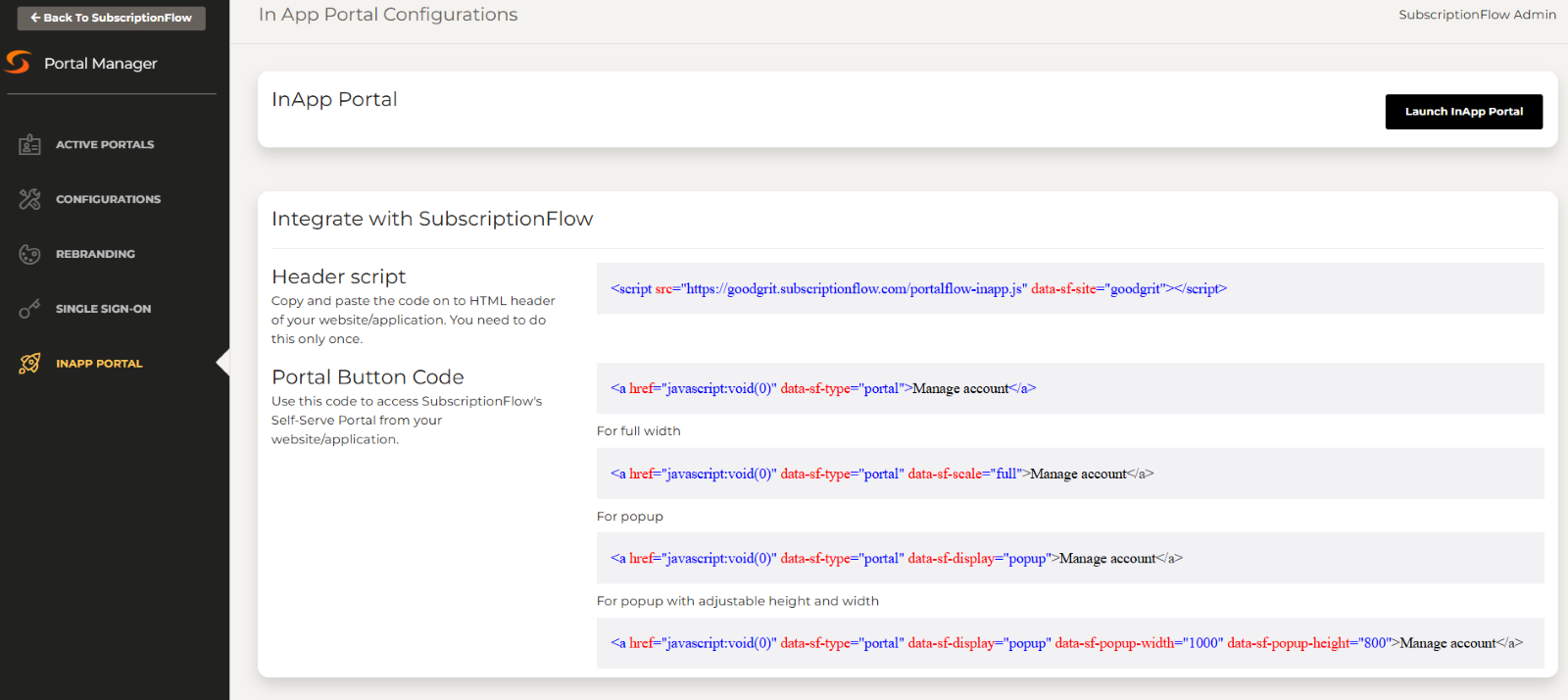

A. Go to Customer Portal -> In-App Portal
Header Script:
<script src="https://yourorg.subscriptionflow.com/portalflow-inapp.js" data-sf-site="yourorg"></script>
Replace 'yourorg' with your actual SubscriptionFlow site code.

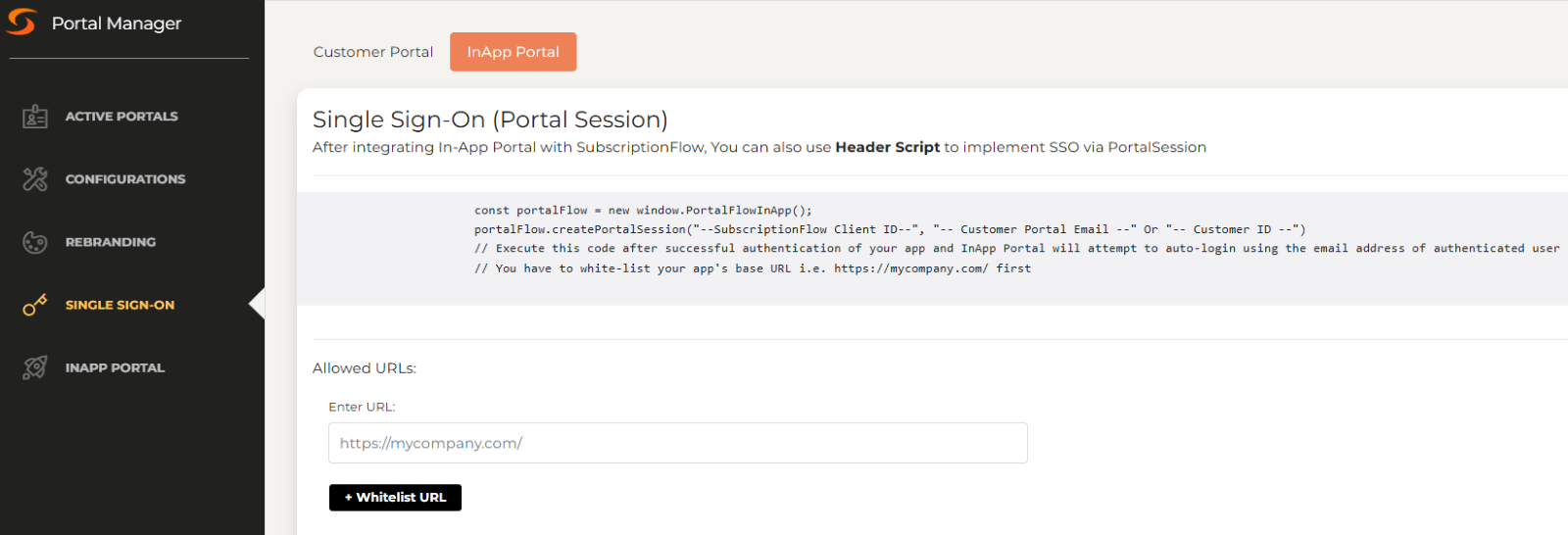

B. Go to Customer Portal -> Single Sign-On
Create Portal Session Script:
const portalFlow = new window.PortalFlowInApp();
portalFlow.createPortalSession('your-client-id', 'user@example.com');


4. Create a Shopify Page Template

• Go to Online Store > Themes in your Shopify admin.
• Click Actions > Edit Code on your live theme.
• Under the Templates folder, click Add a new template.
Choose page and name it subscriptionflow.

In the new `page.subscriptionflow.liquid` file add the above code that we copied in the step 2

Sample Code:
{% extends 'page' %}
{% block content %}

<div id="customer-data" data-email="{{ customer.email }}"></div>
<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.6.0/jquery.min.js"></script>
<script src="https://yourorg.subscriptionflow.com/portalflow-inapp.js" data-sf-site="yourorg"></script>
<div style="padding-top: 25px;">
  <a id="manageAccountBtn" href="javascript:void(0)" data-sf-type="portal" data-sf-scale="full" style="display: flex; justify-content: center;">
    <span class="loader"></span>
  </a>
</div>
<script>
  $(document).ready(function () {
    const portalFlow = new window.PortalFlowInApp();
    let sessionCreated = false;
    let customerEmail = "{{ customer.email | escape }}" || localStorage.getItem('sfCustomerEmail') || "";
    if (customerEmail) {
      localStorage.setItem('sfCustomerEmail', customerEmail);
      portalFlow.createPortalSession('YOUR-UUID-HERE', customerEmail);
      sessionCreated = true;
      let checkButtonInterval = setInterval(() => {
        let $btn = $("#manageAccountBtn");
        if ($btn.css("opacity") == "1" && $btn.css("pointer-events") == "auto") {
          $btn.click();
          clearInterval(checkButtonInterval);
        }
      }, 500);
      setTimeout(() => {
        $("#manageAccountBtn").hide();
      }, 7000);
    }
  });
</script>
{% endblock %}

5. Create a Shopify Page

• Go to Online Store > Pages in Shopify admin.
• Click Add page.
• Enter a title (e.g., 'Manage Subscriptions').
• Under Theme template, select page.subscriptionflow.
• Click Save.

6. Whitelist Domain in SubscriptionFlow

• Go to Portal Manager > In-App Portal > Whitelist URL.
• Add your Shopify domain (e.g., https://yourstore.myshopify.com).
• Click Save.

7. Test the In-App Portal

• Log in as a test customer.
• Visit the page (e.g., /pages/manage-subscriptions).
• The SubscriptionFlow portal should automatically load with customer data.

Additional Notes

• The integration uses {{ customer.email }} from Shopify Liquid.
• Customize the button and loader styles using CSS.
• This method keeps users within your Shopify domain while using SubscriptionFlow.
