Stitch Express

SubscriptionFlow lets you integrate with Stitch Express to collect card payments and process recurring subscription charges through saved card consent.

This guide walks you through connecting your Stitch Express merchant account with SubscriptionFlow.

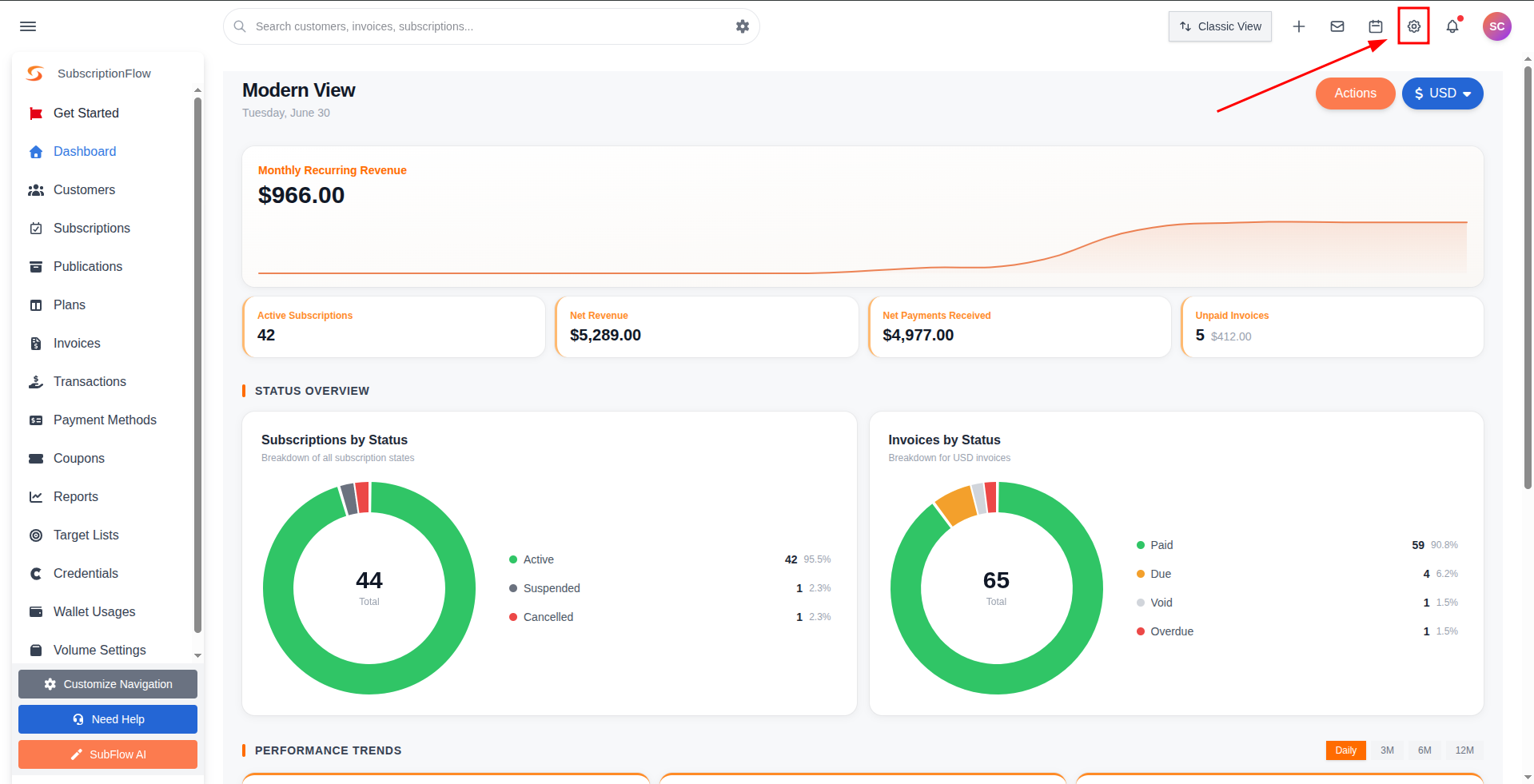

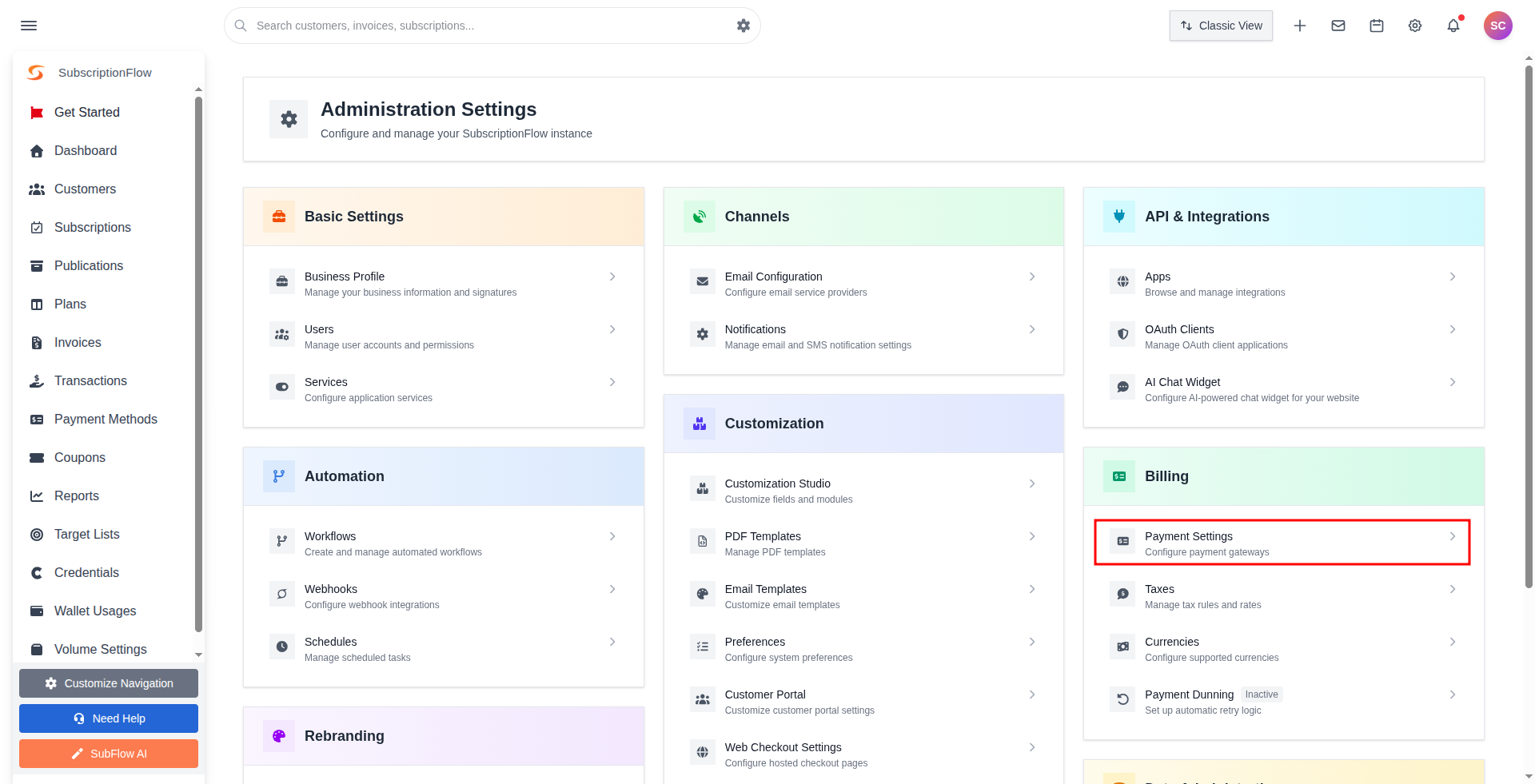

1. Click the ⚙️ icon at the top right to open Settings. Under Billing, click Payment Settings.

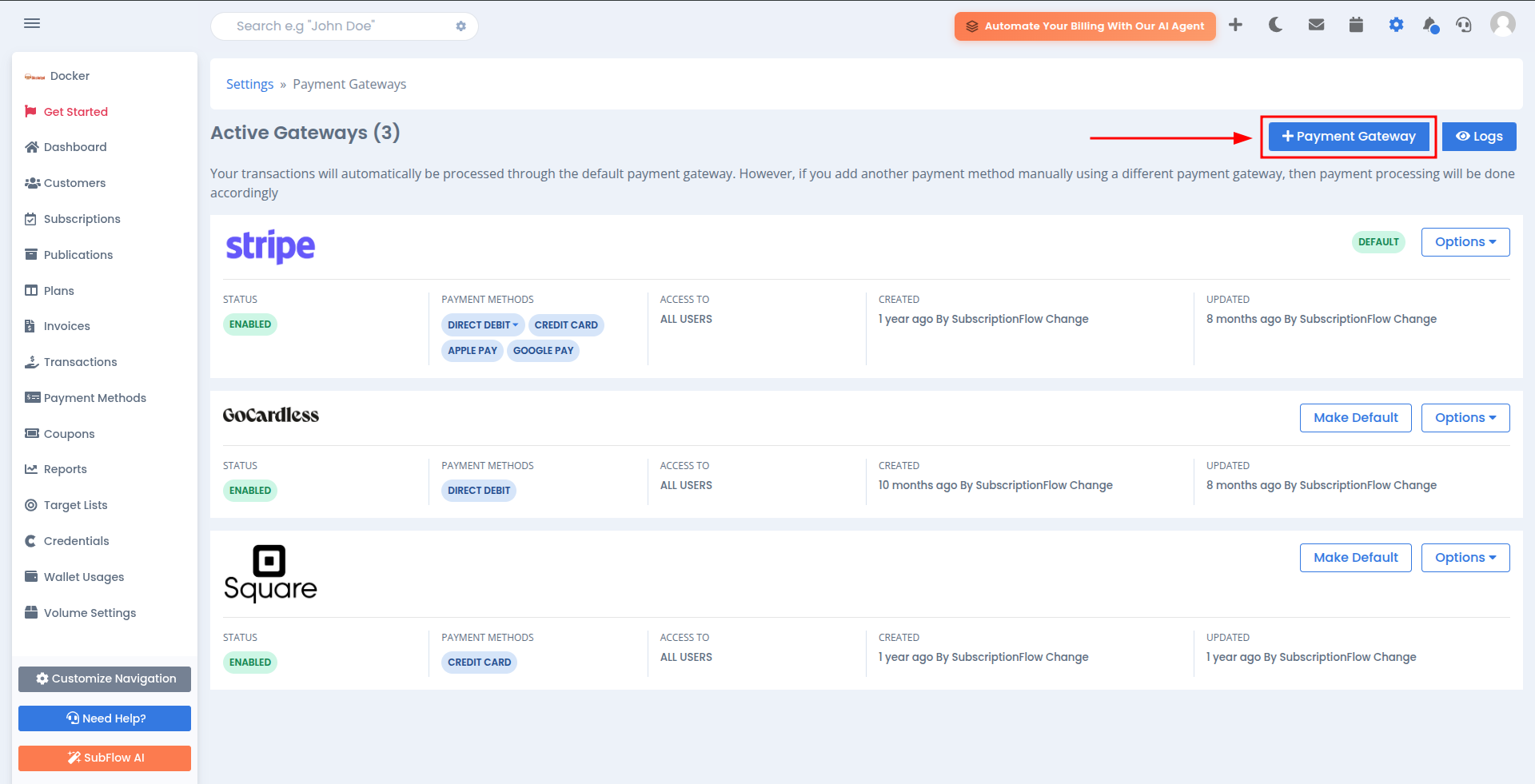

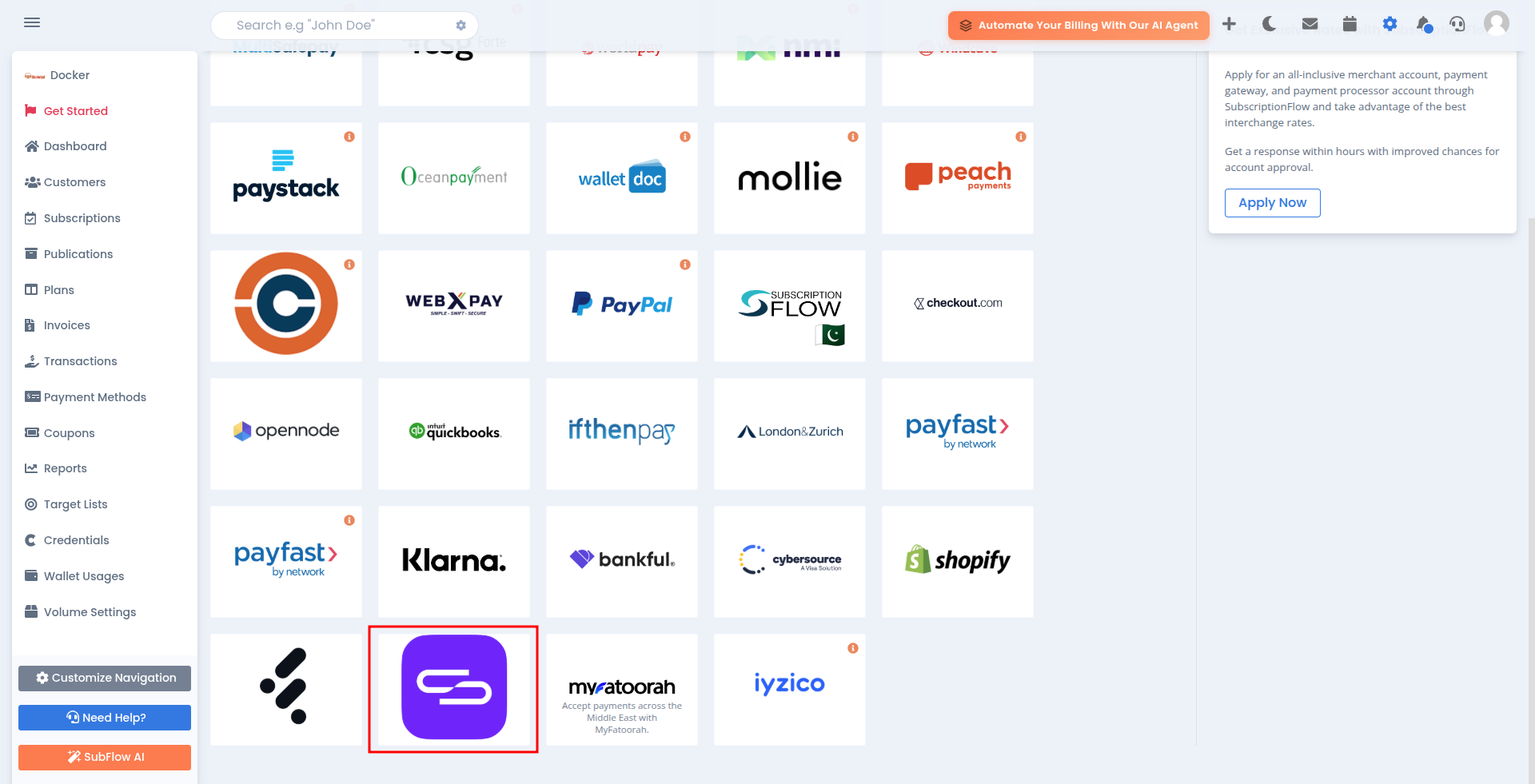

2. Click + Payment Gateway. Under Available Gateways, find Stitch Express and click Configure gateway.

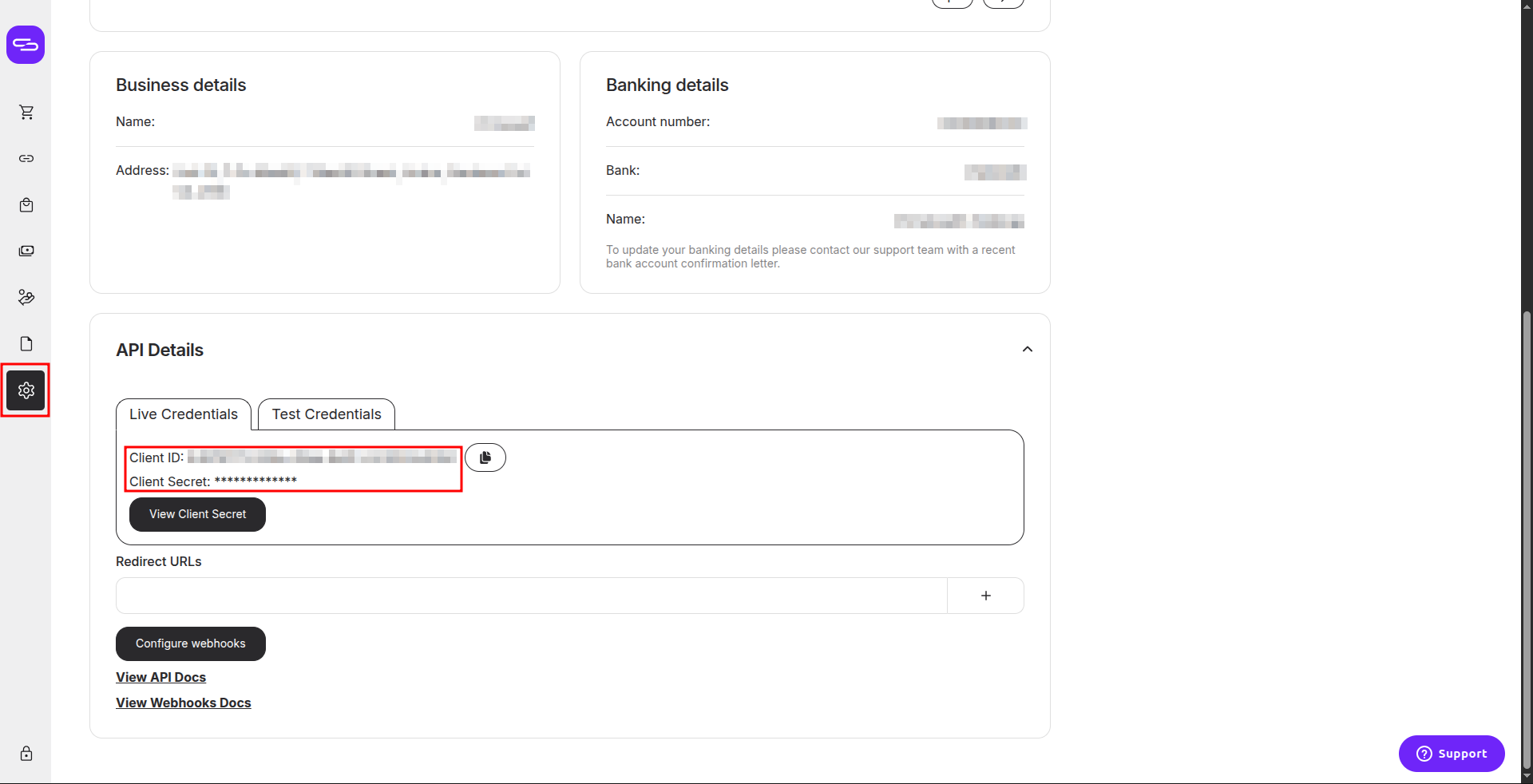

3. Get your credentials from the API Details section of your Stitch dashboard.

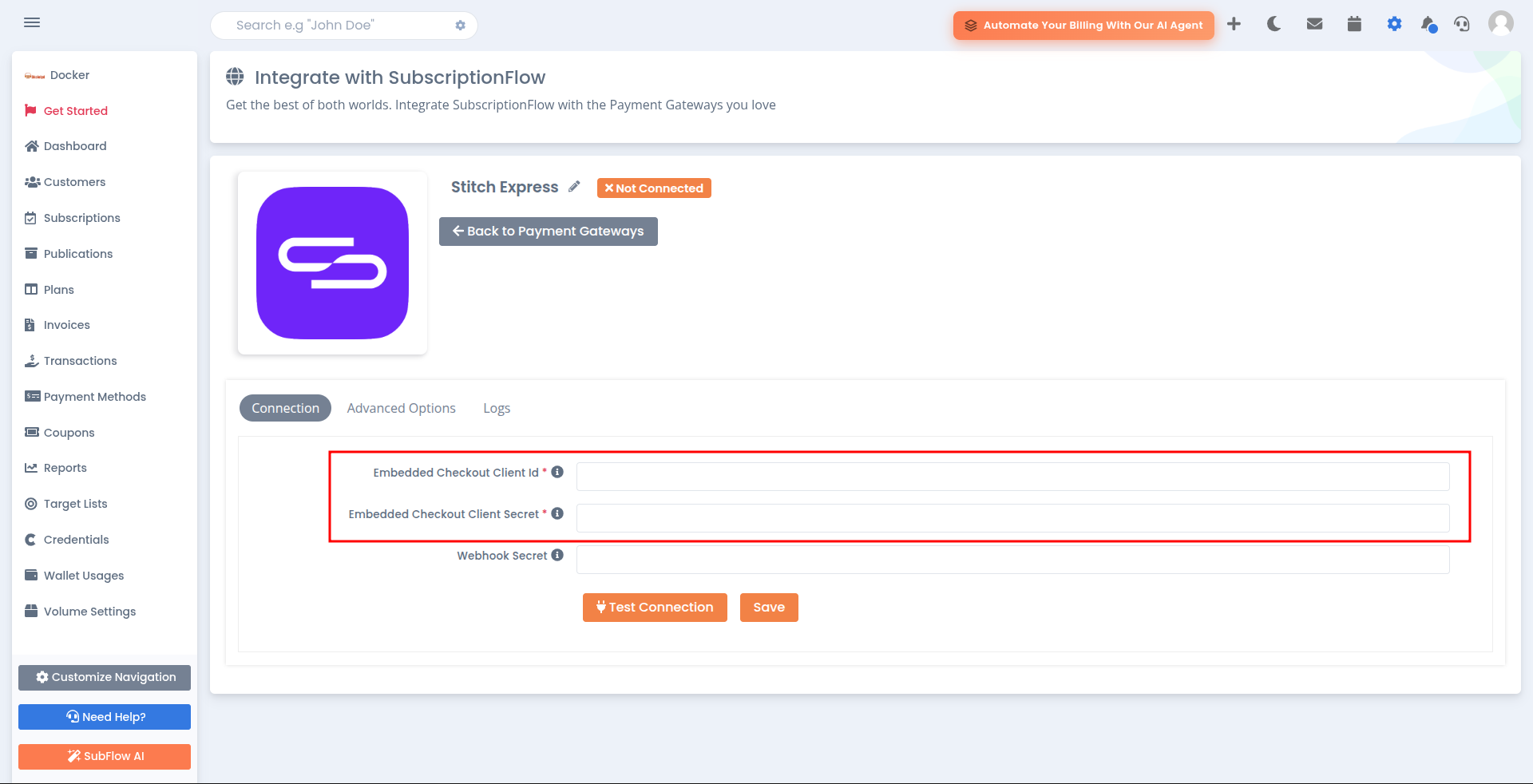

4. On the Connection tab, enter:

   • Embedded Checkout Client Id
   • Embedded Checkout Client Secret
   • Webhook Secret: optional; this is normally filled in automatically when webhooks are configured.

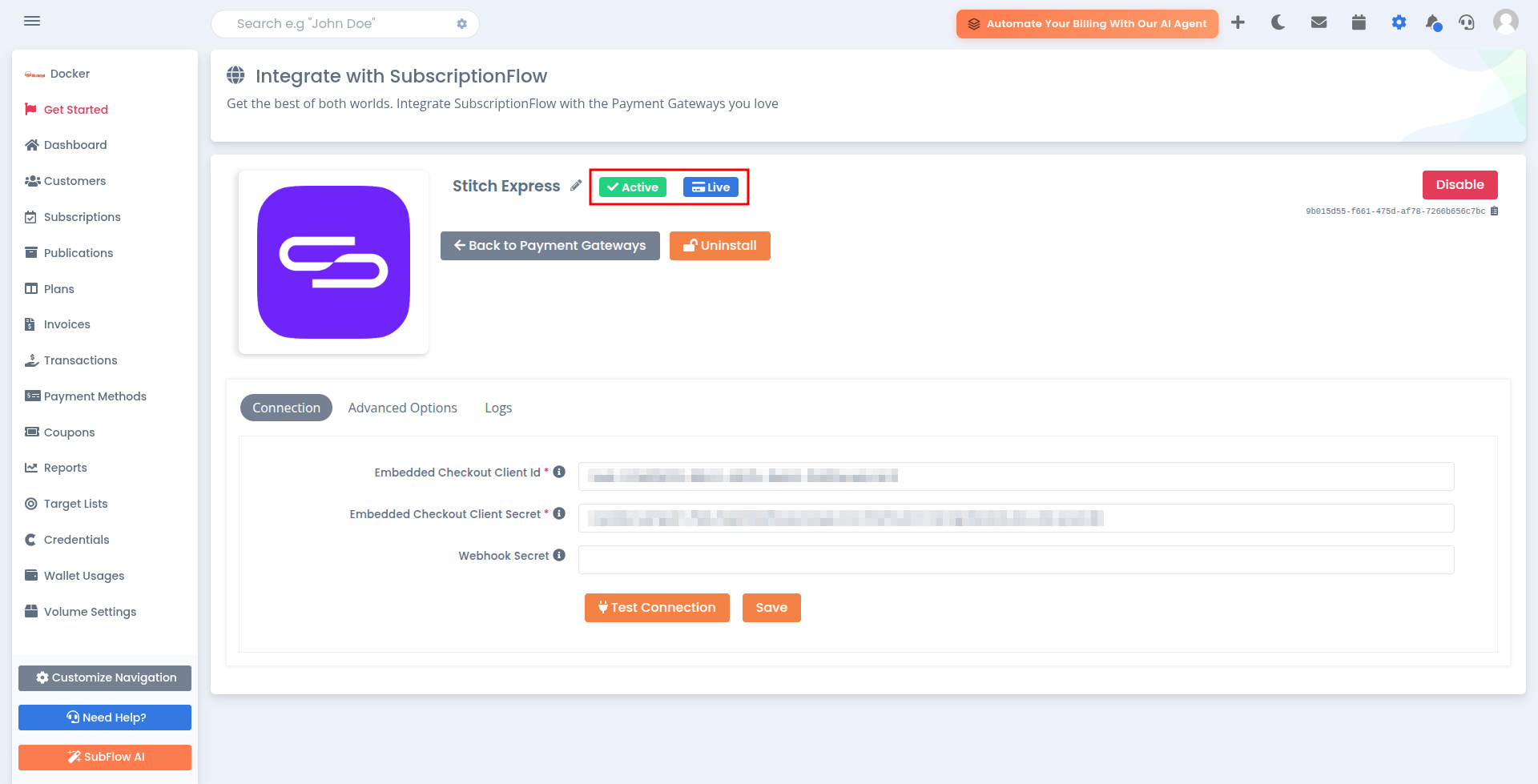

   Click Test Connection. If the credentials are valid, SubscriptionFlow shows a successful connection message. Click Save. Stitch Express is now installed and active.

Configure Advanced Options

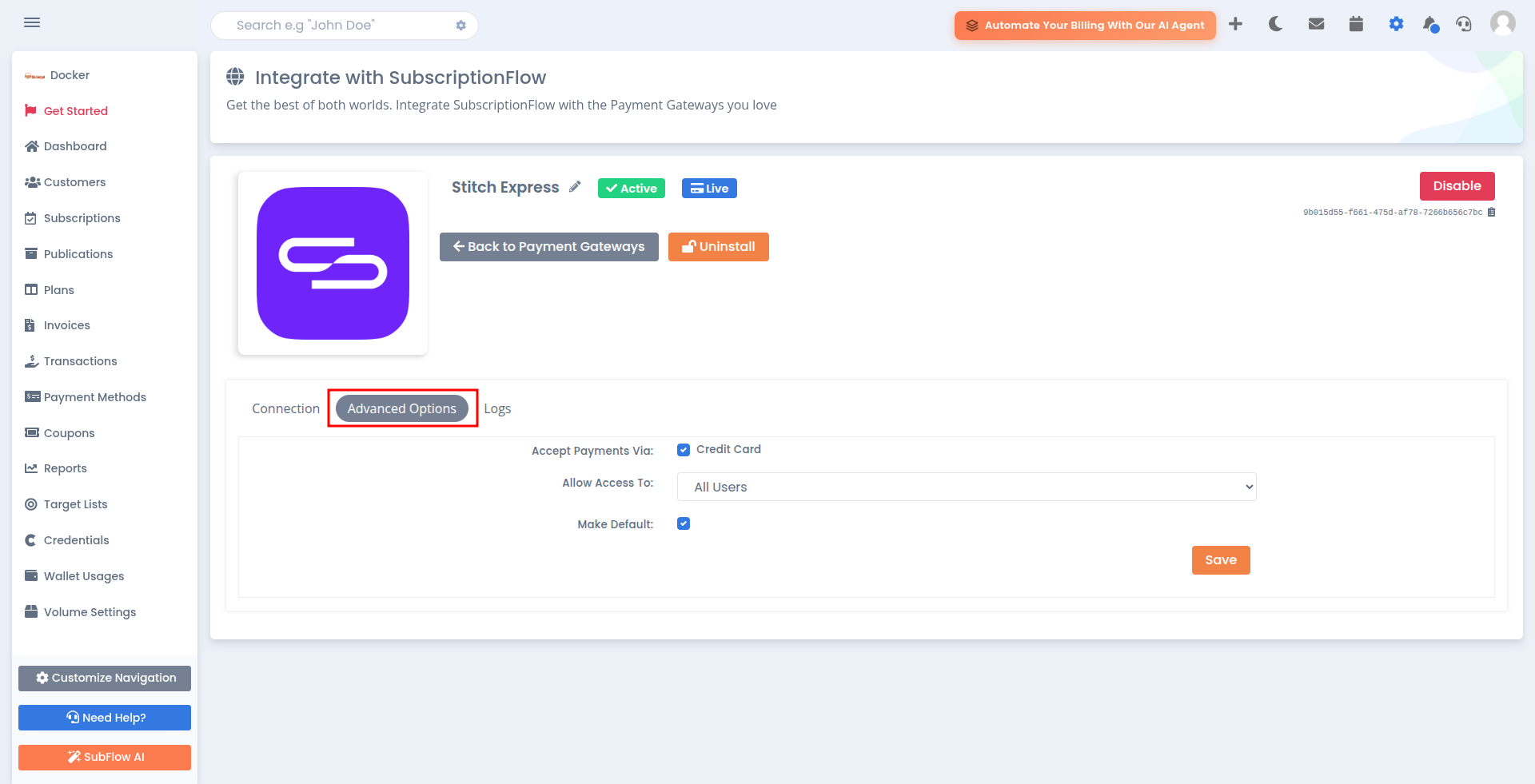

5. Open the Advanced Options tab.
6. Under Accept Payment Via, keep Credit Cards enabled.
7. Under Allow Access To, choose which users can use and change this gateway.
8. Check Make Default if Stitch Express should be your default gateway for collecting payments.
9. Click Save.

Webhooks

SubscriptionFlow automatically tries to configure Stitch Express webhooks after the gateway is saved. If Stitch returns a webhook signing secret, SubscriptionFlow stores it in the gateway credentials.

Open the Logs tab to confirm webhook configuration activity.

Note: Webhooks are required for reliable payment status updates between Stitch Express and SubscriptionFlow. Without them, payment statuses may not update in real time.

That is how you connect Stitch Express with SubscriptionFlow.
